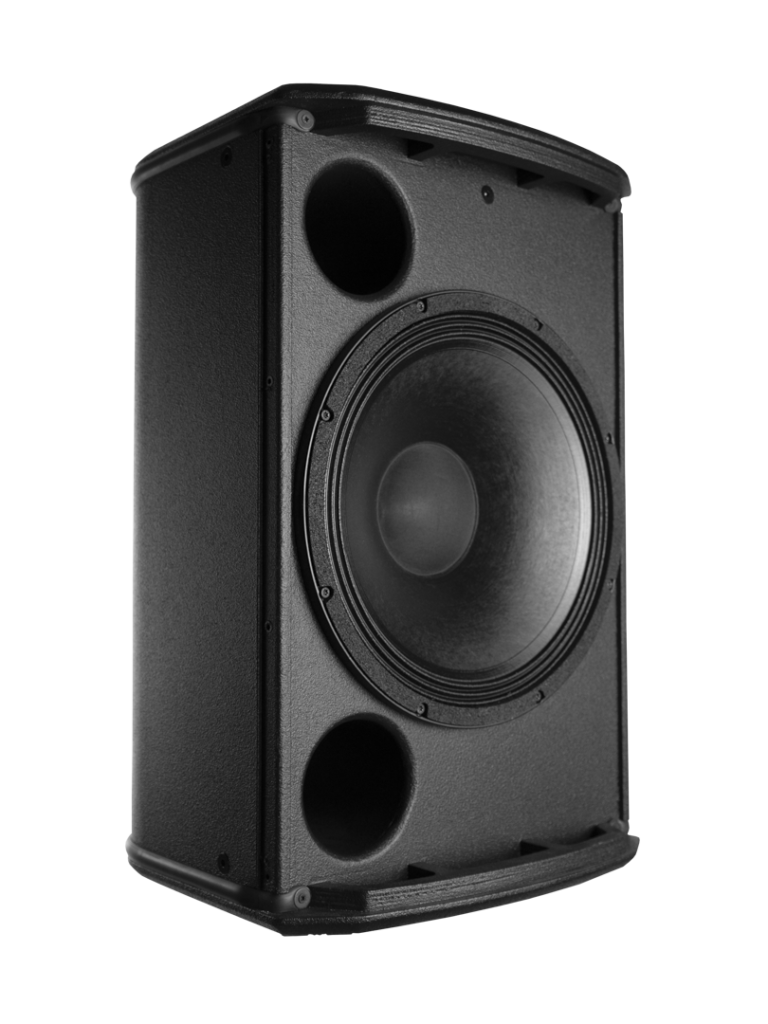

Xcellence X14FD

Xcellence X14FD

An ultra-compact PA or stage monitor system with a single revolutionary low distortion, high power handling 14″ coaxial driver providing an LF response equivalent to a 15” driver, the clear and smooth MF resolution of a 12” driver, and the fidelity and power capabilities of a large diaphragm HF compression driver.

Amate Audio’s latest version Active+™ onboard power & DSP control platform, delivers 1500 W Class D bi-amplification and colour touchscreen operated DSP loudspeaker system management, with advanced FIR filters, system presets, Dante™ audio networking and Ethernet / Wi-Fi remote control.

With its asymmetrical trapezoidal form factor the X14FD can be hung, flown, stacked or pole mounted in FoH PA applications; or floor-standing on its horizontal axis, it is a high performance stage monitor.

Amplifier program power1000 W (LF) + 500 W (HF) Class D Bi-amplified
Analog inputNominal: +8dBu
Max: +20dBu
Impedance: 20 kΩ Balanced
Audio networkingDante™ audio networking input, 1 channel, 48kHz
MainsUniversal Switch Mode Power Supply 85-265 V / 45-65 Hz
Average current draw2.1 A (Heavy duty musical program)
SPL (1m)129 dB continuous, 132 dB peak
Built-in DSP64- bit processing unit. Includes factory presets
AD/DA converters24 bit – 48 kHz – SNR > 112dB
PresetsFLAT, SPEECH, MONITOR, HPF80, HPF90, HPF100
Frequency response (-10 dB)48 Hz – 20 kHz
LF14” neodymium woofer (3” voice coil)
HF3” titanium diaphgram, neodymium magnet compression driver
Directivity (HxV)80º x 80º
Dimensions (HxWxD)623 x 402 x 430 mm
Weight23.6 Kg
FinishMultilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles
Grille2 mm steel with grey micro-foam cloth
RiggingM8 points
Connectors1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1 x EtherCon® RJ45 input / 1 x EtherCon® RJ45 link

Data Sheet

Download

General user’s manual

Download

Architect specifications

Download

2D CAD drawing

Download

GLL library X102FD

Download

EASE FOCUS 3 v.3.1.230 + Amate Audio pack

Download

DSP Studio 3.1 Software (for Windows)

Download

DSP Studio 3 quick installation guide

Download

Flight Case

FC-X14FD - for two units of X14FD

Wall Mount Bracket

UB-L- for X14FD

User’s manual

Wall Mount Bracket

SP-WHR - for X14FD

User’s manual

Flying Bar

RB-L - for X14FD

User’s manual

Flying Bar With Hook

RB-L/GT - for X14FD

User’s manual

Telescopic Distance Rod

SP/CRTL- for X14FD

Safety Sling

SC-15 -for X14FD

User’s manual

M8 Rigging Eyebolt

ACR-M8 -for X14FD

Software - Dsp studio 3

The latest iteration of Amate Audio’s DSPStudio enhances the remote control of Xcellence systems with ACTIVE+ platform via Ethernet/Wi-Fi.

Full ACTIVE+ support  includes limiters with multichannel gain reduction indication, selectable ECO mode, tilt sensor indication and calibration, new FIR/IIR all-pass filters, 200 meter delay, mains condition and amplifier channel temperature monitoring.
