Nítid S26P

Nítid S26P

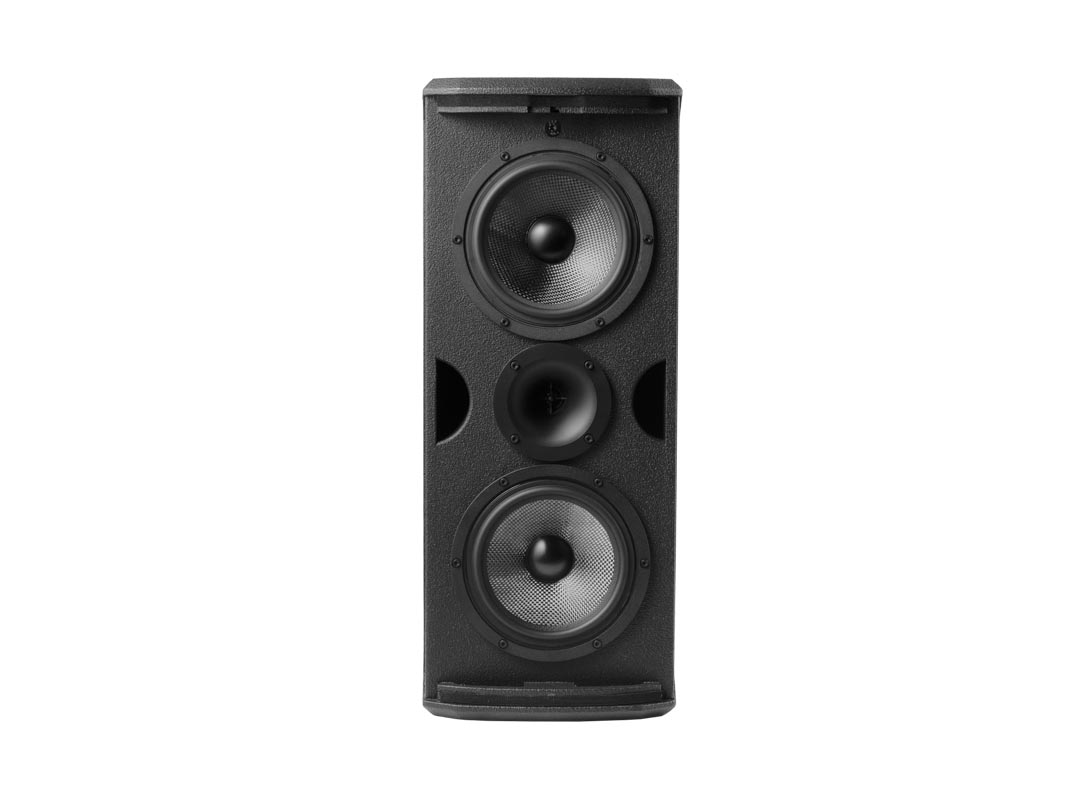

Dual custom high-performance 6” carbon fiber drivers deliver incredible sound quality and 121 dB continuous SPL output capability from this advanced ultra-compact cabinet, resulting in extraordinary power levels and signal coverage from this discretely dimensioned loudspeaker.

Custom driver with carbon fiber cone

6” low frequency custom driver with carbon fiber cone, specially developed rubber suspension and neodymium magnet. This ultra powerful lightweight driver provides near audiophile signal reproduction, extended LF response, and high SPLs.

Program power400 W
Impedance8Ω or 16Ω available
SPL (1W/1m)95 dB
Maximum SPL (continuous/1m)121 dB
Frequency response (-10 dB)62 Hz – 20 kHz
LF2x6” neodymium woofers with carbon fiber cone (1.5” voice coil)
HF1″ titanium diaphragm neodymium tweeter
Directivity (HxV)90º x 70º
Dimensions (HxWxD)572 x 230 x 250 mm
Weight9.1 Kg
FinishMultilayer birch plywood with high resistant black Polyurea® coating
Grille1.5mm powder coated steel with black acoustic mesh
Connectors1x Speakon NL4MP input / 1x Speakon NL4MP link

Data Sheet

Download

General user’s manual

Download

Architect specifications

Download

2D CAD drawing

Download

GLL EASE library S26P-8Ω

Download

GLL EASE library S26P-16Ω

Download

Protective Cover

NC-S26 for S26P

Wall Mount Bracket

UB-L - for S26P

User’s manual

Wall Mount Bracket

SP-WHR - for S26P

User’s manual

Wall Mount Bracket

SP-6N - for S26P

User’s manual

Flying Bar

HR-LU - for S26P

User’s manual

Flying Bar With Hook

HR-LU/GT - for S26P

User’s manual

Telescopic Distance Rod

SP/CRTL- for S26P

Safety Sling

SC-15 - for S26P

User’s manual

M8 Rigging Eyebolt

ACR-M8 - for S26P
