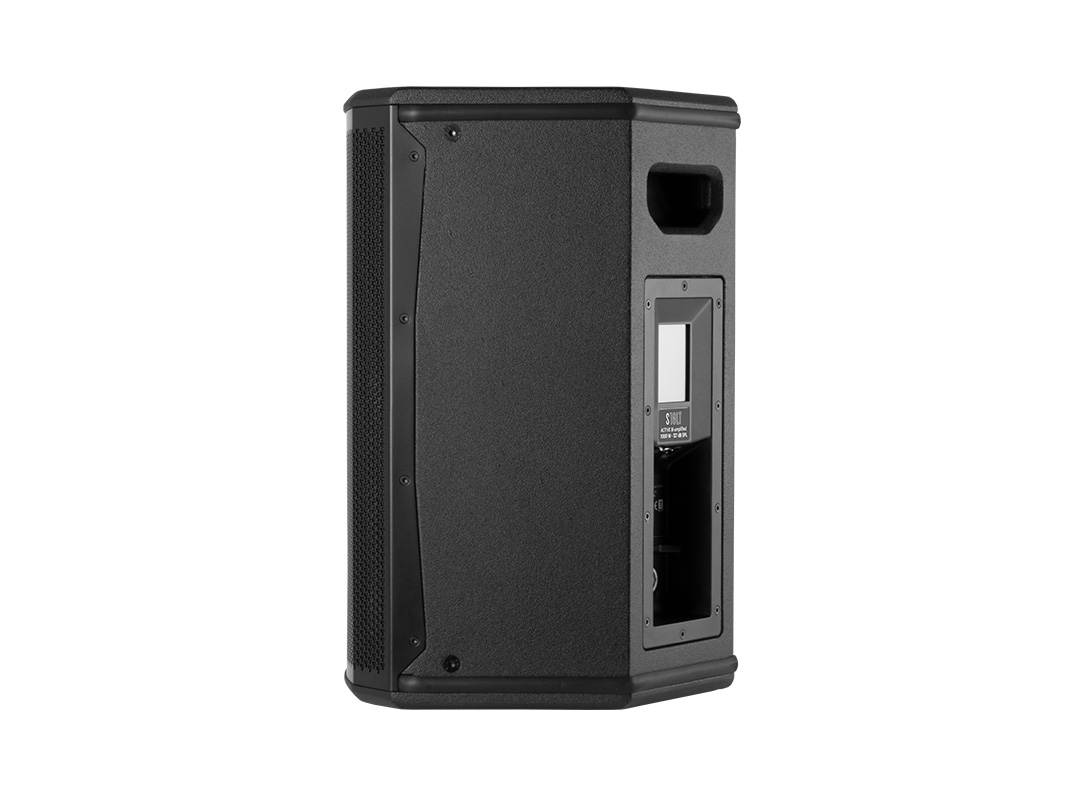

Engineered for extended performance in a compact 10” point source format, the S10LT builds upon the proven S10 design with upgraded transducers, increased amplifier power and greater dynamic headroom.
A new LF/HF architecture ensures smoother crossover and enhanced vocal clarity, while preserving the
portability and refined design that define the Nítid-S series.
Amate Audio’s latest generation DSP system management is integrated with 3rd generation Class D amplification. Colour touchscreen operation and monitoring of DSP system includes access to powerful presets – engineered by Amate Audio’s R&D team – that instantly configure your Nítid loudspeaker for the majority of common application environments within seconds, prior to rigging or installation.
| Amplifier program power | 800 W (LF) + 200 W (HF) Class D Bi-amplified |
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 50 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 1.7 A (Heavy duty musical program) |
| SPL (1m) | 127 dB continuous, 130 dB peak |
| Built-in DSP | 64-bit processing unit. Includes factory presets. |
| Presets | FLAT / SPEECH / MONITOR / HPF90 |
| AD/DA converters | 24 bit – 48 kHz |
| Standby mode consumption | 3.7 W @230VAC |
| Adjustable delay line | 294 ms / 100 m |
| Frequency response (-10 dB) | 53 Hz – 19 kHz |
| LF – MF | 10″ neodymium woofer (3″ voice coil) |
| HF | 1.5" polymer diaphragm neodymium magnet ring driver |
| Directivity (-6dB) | 50º to 100º (H) x 55º (V) |
| Dimensions (HxWxD) | 543 x 313 x 358 mm |
| Weight | 16.4 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 1.5mm powder coated steel with black acoustic mesh |

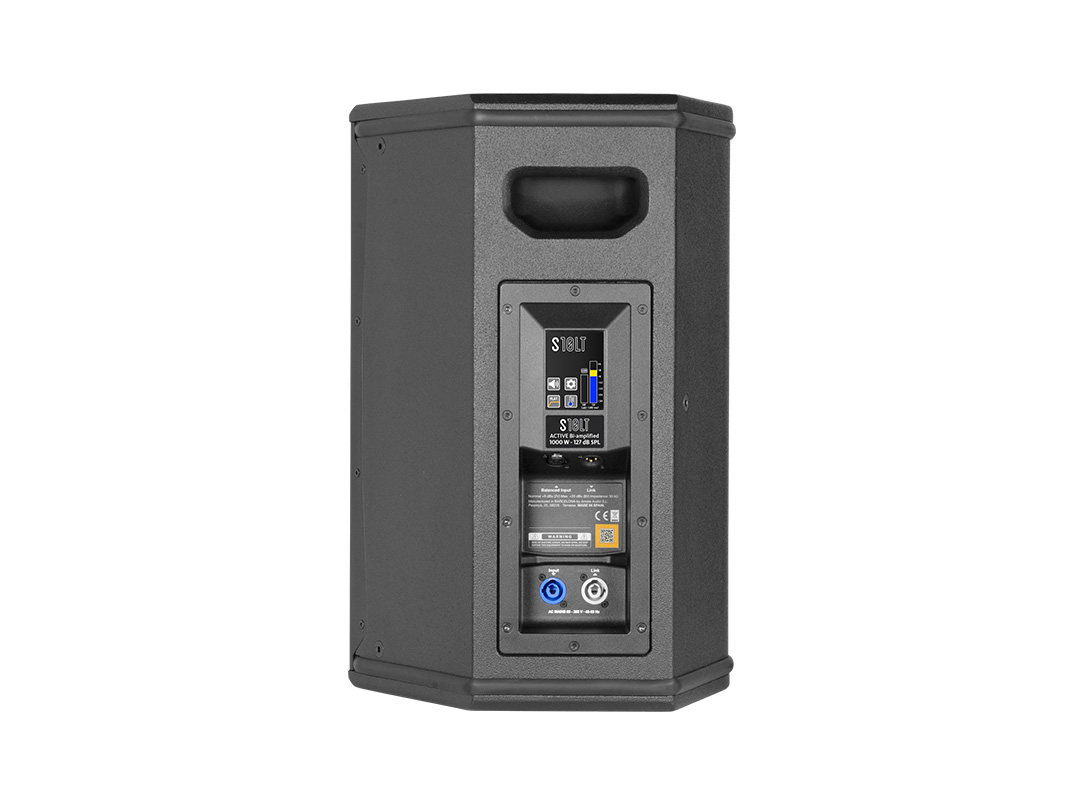

| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link |
| Data Sheet | Download |
| General user’s manual | Download |
| Architect specifications | Download |
| 2D CAD drawing | Download |
| GLL EASE library S10LT | Download |
| EASE FOCUS 3 v.3.1.260 + Amate Audio pack | Download |
 | Flight Case FC-S10 - for 2 units of S10LT | |
 | Protection Cover NC-S10 - for S10LT | |
 | Wall Mount Bracket UB-L - for S10LT | User’s manual |
 | Wall Mount Bracket SP-WHR - for S10LT | User’s manual |
 | Flying Bar RB-S - for S10LT | User’s manual |
 | Flying Bar With Hook RB-S/GT - for S10LT | User’s manual |
 | Telescopic Distance Rod SP/CRTL- for S10LT | |
 | Safety Sling SC-15- for S10LT | User’s manual |
 | M8 Rigging Eyebolt ACR-M8 - for S10LT |
