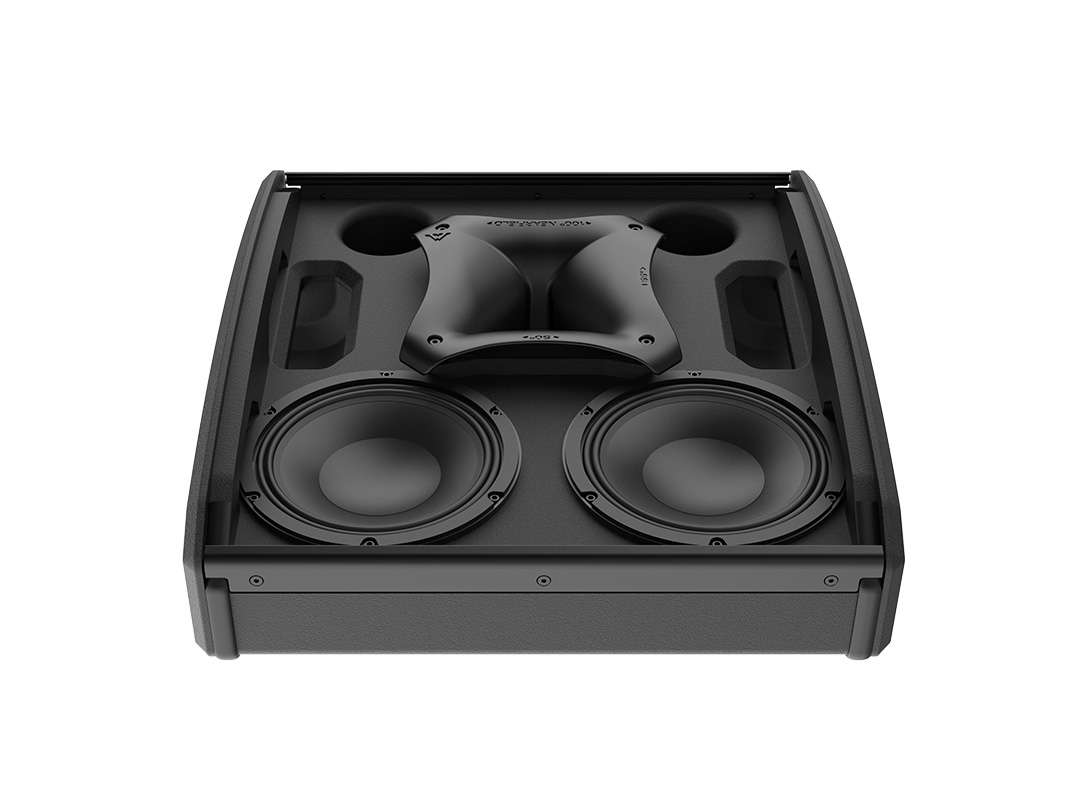

The first stage monitor in the XCELLENCE series. True to the principles of the series, it delivers exceptional power and clarity, thanks to its state-of-the-art transducers which, at maximum output, reduce distortion by up to 30% compared to current monitors.
| Amplifier program power | 2500 W (LF) + 500 W (HF) Class D Bi-amplified |
| Analog input | Nominal: +8 dBu. Max: +20 dBu. Impedance: 20 kΩ Balanced |
| Audio networking | Dante™ audio networking input, 1 channel, 48kHz |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 2,9 A (Heavy duty musical program) |
| SPL (1m) | 132 dB continuous, 135 dB peak |
| Built-in DSP | 64- bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz - SNR >112dB |
| Presets | MONITOR, FR_FLAT, HPF90 + 25 configurable user memories |
| Frequency response (-10 dB) | 70 Hz – 19 kHz |
| LF | 2x 8" neodymium woofers (2" long excursion dual voice coil) |
| HF | 1 x 1.7" HT polymer diaphragm, neodymium magnet compression driver |
| Directivity (-6 dB) | 50Âş to 100Âş (H) x 55Âş (V) |
| Dimensions (HxWxD) | 345 x 490 x 530 mm |
| Weight | 20 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 2 mm steel with grey micro-foam cloth |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link |
| Data Sheet | Descargar |
| General user’s manual | Descargar |
| Architect specifications | Descargar |
| 2D CAD drawing | Descargar |
| GLL library XM82 - PSOURCE | Descargar |
| EASE FOCUS 3 v3.1.260 + Amate Audio Pack | Descargar |
| DSP Studio 4 Software (for Windows) | Descargar |
 | Flight Case FC-XM82 - for two units of XM82 | |
 | Telescopic Distance Rod SP/CRTL- for XM82 |
The latest iteration of Amate Audio’s DSPStudio enhances the remote control of Xcellence systems with ACTIVE+ platform via Ethernet/Wi-Fi.
Full ACTIVE+ support includes limiters with multichannel gain reduction indication, selectable ECO mode, tilt sensor indication and calibration, new FIR/IIR all-pass filters, 200 meter delay, mains condition and amplifier channel temperature monitoring.
