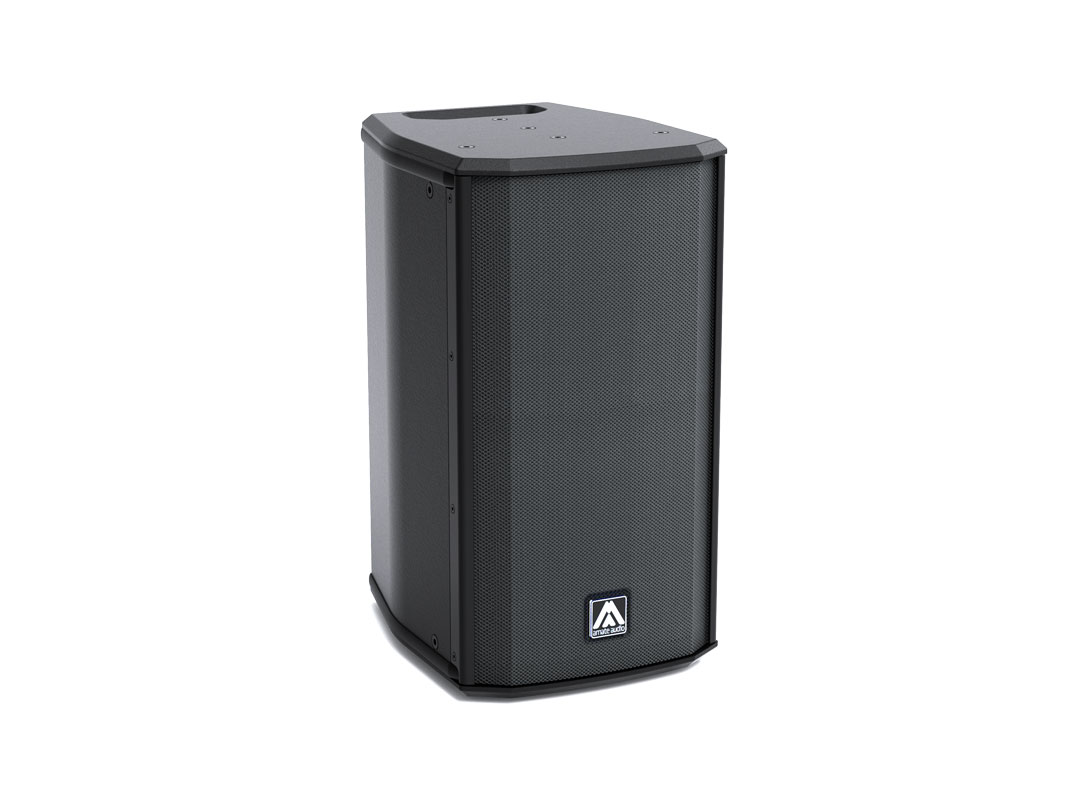

The X10FD is the most compact point source system in the Xcellence series: a refined and powerful loudspeaker that shares the same engineering DNA as the larger Xcellence models. Its optimized design ensures precise tonal balance and clarity, making the X10FD an exceptional choice for portable PA or as a high-definition complement within the Xcellence range.
| Amplifier program power | 800 W (LF) + 200 W (HF) Class D Bi-amplified |
| Analog input | Nominal: +8 dBu. Max: +20 dBu. Impedance: 20 kΩ Balanced |
| Audio networking | Dante™ audio networking input, 1 channel, 48kHz |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 2.2 A (Heavy duty musical program) |
| SPL (1m) | 128 dB continuous, 131 dB peak |
| Built-in DSP | 64- bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz |
| Presets | FR_FLAT / FR_NEARFIELD / HPF90_FLAT / HPF90_NEARFIELD / SPEECH + 25 configurable user memories |
| Frequency response (-10 dB) | 53 Hz – 19 kHz |
| LF | 10" neodymium woofer (3" voice coil) |
| HF | 1 Ă— 1.7" HF polymer diaphragm, neodymium magnet compression driver |
| Directivity (HĂ—V) | 50Âş to 100Âş (H) Ă— 55Âş(V) |
| Dimensions (HĂ—WĂ—D) | 554 Ă— 303 Ă— 370 mm |
| Weight | 19 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 1.5 mm steel with grey micro-foam cloth |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link |
| Data Sheet | Download |
| General user’s manual | Download |
| Architect specifications | Download |
| 2D CAD drawing | Download |
| GLL library X10FD | Download |
| EASE FOCUS 3 v3.1.260 + Amate Audio pack | Download |
| DSP Studio 4 Software (for Windows) | Download |
| DSP Studio 4 Software (for MAC) | Download |
 | Flight Case FC-X10FD - for two units of X10FD | |
 | Wall Mount Bracket SP-WHR - for X10FD | User’s manual |
 | Flying Bar RB-S - for X10FD | User’s manual |
 | Flying Bar With Hook RB-S/GT - for X10FD | User’s manual |
 | Wall Mount Bracket UB-L- for X10FD | User’s manual |
 | Telescopic Distance Rod SP/CRTL- for X10FD | |
 | Safety Sling SC-15 - for X10FD | User’s manual |
 | M8 Rigging Eyebolt ACR-M8 - for X10FD |
The latest iteration of Amate Audio’s DSPStudio enhances the remote control of Xcellence systems with ACTIVE+ platform via Ethernet/Wi-Fi.
Full ACTIVE+ support includes limiters with multichannel gain reduction indication, selectable ECO mode, tilt sensor indication and calibration, new FIR/IIR all-pass filters, 200 meter delay, mains condition and amplifier channel temperature monitoring.
