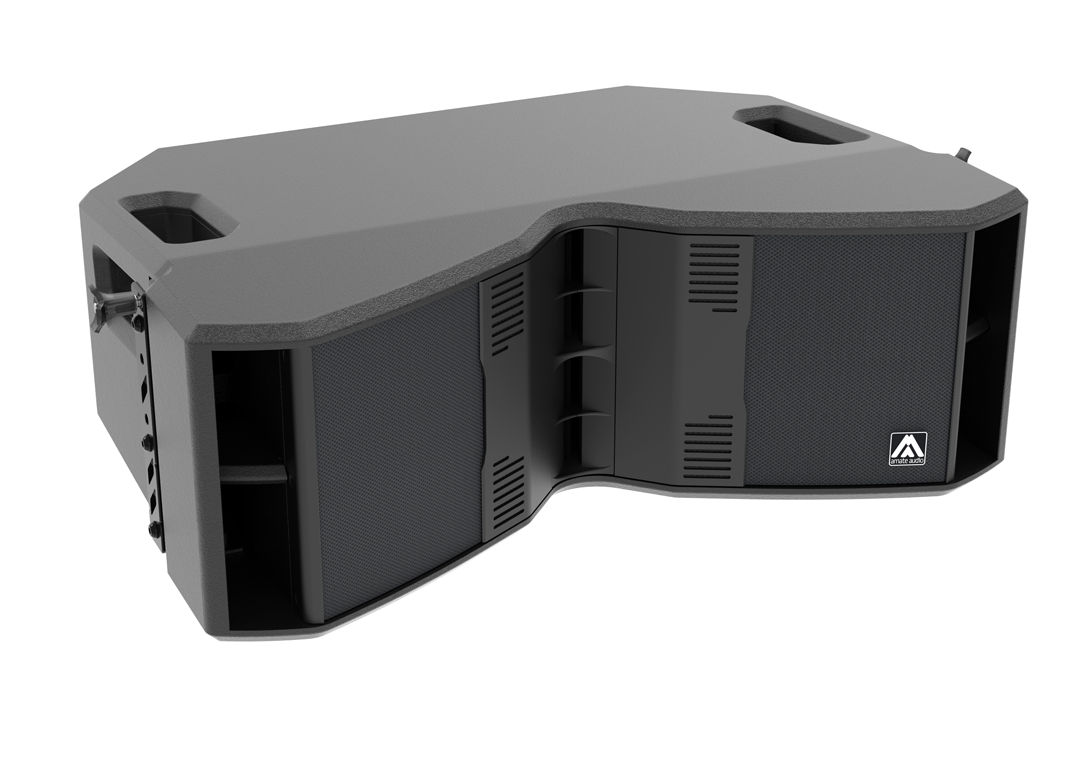

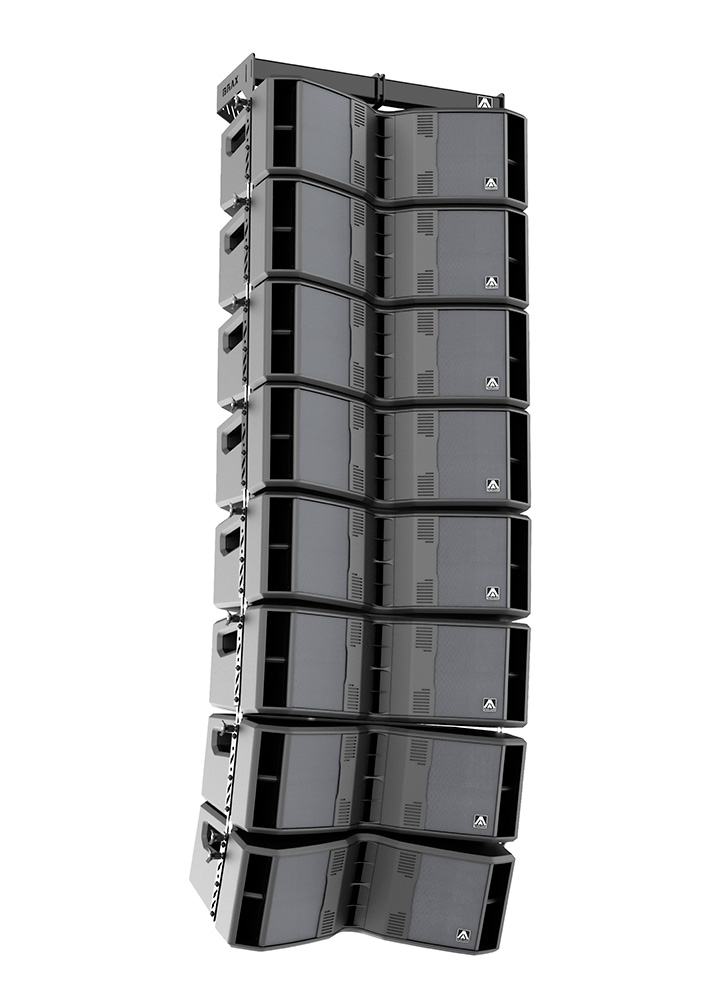

Xcellence XA209

A new milestone in compact line array design, the XA209 is engineered with the latest acoustic technologies
from the XCELLENCE series, delivering signature clarity, definition and control in a streamlined enclosure.
Precision-crafted for impactful sound in any environment.

  • Integrated power & control presets
  • Exclusive high performance waveguide
  • Light neodymium components
  • > 250 V Overvoltage protection
Data Sheet

Touchscreen control

Amate Audio’s unique rear-panel 3.5″ TFT color touchscreen GUI allows for operation and monitoring of system parameters, presets, and user-adjustments. The GUI also integrates Amate Audio’s latest generation DSP system management with 3rd generation Class D amplification. With the color touchscreen, users can access powerful presets engineered by Amate Audio’s R&D team that can instantly configure Xcellence loudspeakers for common application environments prior to rigging or installation.

PROJECT XA209

Enjoy the official video recap of the XA209 line array launch event. Thank you to everyone who joined us in celebrating this important step forward in sound innovation.

Amplifier program power2500 W (LF) + 500 W (HF) – Class D Bi-amplified
Analog inputNominal: +8 dBu.
Max: +20 dBu.
Impedance: 20 kΩ Balanced
Audio networkingDante™ audio networking input, 1 channel, 48kHz
MainsUniversal Switch Mode Power Supply 85-265 V / 45-65 Hz
Average current draw3.3 A (Heavy duty musical program)
SPL (1m)135 dB musical program, 138 dB peak
Built-in DSP64-bit processing unit. Includes factory presets
AD/DA converters24 bit – 48 kHz
PresetsFR FLAT, FR NEARFIELD, FR LONGTHROW, HPF90 FLAT, HPF90 NEARFIELD, HPF90 LONGTHROW
Frequency response (-10 dB)70 Hz – 18 kHz
LF-MF2 × 8” neodymium woofers (2” long excursion dual voice coil)
HF2 × 1.7” HT polymer diaphragm, neodymium magnet compression drivers
Directivity (-6dB)95º (H) x 10º (V)
Dimensions (HxWxD)245 × 680 × 550 mm (excluding pins)
Weight26.7 kg
FinishMultilayer baltic birch plywood with high resistant black Polyurea® coating
Grille1.5 mm powder coated steel with grey micro-foam cloth
RiggingStainless-steel black painted integrated rigging bars
Connectors1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1 x EtherCon® RJ45 input / 1 x EtherCon® RJ45 link

Data Sheet

Download
General user’s manual

Download
Architect specifications

Download
2D CAD drawing

Download
GLL library XA209

Download
EASE FOCUS 3 v.3.1.260 + Amate Audio pack

Download
DSP Studio 4 Software (for Windows)

Download

Flight Case

FC-XA209 - for six units of XA209 with bumper

Touring Bumper

BRAX - for XA209

Stacking Hardware

STAX - for XA209 over XW118 / XW218
