Xcellence X208A

Xcellence X208A

Style and performance come together in the X208. Exclusive, customised waveguide projects sound with consistency at great distance, allowing you to handle nearly any application. Amate Audio technology in X208 delivers ease of use a unique sound quality in a compact size. Innovation that you can hear!

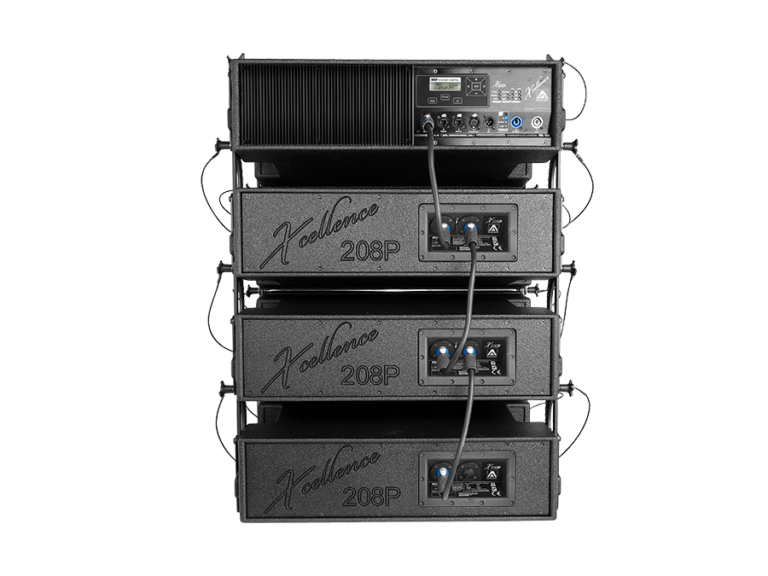

1 active + 3 passive configuration

The lightest powered 2 x 8” array set on the market.

Amplifier Program Power2400 W (LF) + 600 W (HF) – Class D Bi-amplified
Input Sensitivity8 dBu – 1.94 V
Input Impedance20 KΩ Balanced
MainsUniversal switch mode Power Supply 85-265 V / 45-65 Hz
Average current draw3.8 A (Heavy duty musical program)
SPL (1m)130 dB continuous, 133 dB peak
Built-in DSP48 bit
AD/DA converters24 bit – 96 KHz
Presets4FLAT_FR / 4FLAT_SW / 4ARC-_FR / 4ARC-_SW / 4ARC+_FR / 4ARC+_SW / 8FLAT_FR / 8FLAT_SW / 8ARC-_FR / 8ARC-_SW / 8ARC+_FR / 8ARC+_SW / 2ARC-_FR / 2ARC-_SW / 2ARC+_FR / 2ARC+_SW + 23 configurable user memories
Frequency response (-10 dB)78 Hz – 18 kHz
LF-MF2x 8″ neodymium woofers (2.5″ voice coil)
HF2x 1.75″ PEN diaphragm neodymium drivers
Directivity (HxV)110º x 11º
Dimensions (HxWxD)279 x 684 x 522 mm
Weight25 kg
FinishMultilayer baltic birch plywood with high resistant black Polyurea® coating
Grille1.5mm steel with grey micro-foam cloth
RiggingStainless-steel integrated rigging bars
Connectors1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link

Data Sheet

Download

General user’s manual

Download

Architect specifications

Download

2D CAD drawing

Download

GLL library - X208

Download

EASE FOCUS 3 v.3.1.11 + Amate Audio pack

Download

DSP Studio 2.1 Software

Download

DSP Studio 2.1 quick installation guide

Download

Flight Case

FC-X208 - for four units X208

Touring bumpers

TA-X208R - for X208

Frame adaptor

FA-X208/210 - for X208 underneath X210

User’s manual

Stacking frame

FR-208R - or X208 over X18T/X218WFD

User’s manual

Wireless Communication Kit

For all Xcellence cabinets

More information

Software - Dsp Studio 2

The application – which is also available in a iPad version – utilises a bespoke control protocol that supports Wi-Fi connectivity (control over IP).
It allows to address the ethernet-enabled amp and DSP modules in the Xcellence series cabinets

Related Products

Xcellence X212AFD

X212AFD

Xcellence X102FD

X102FD

Xcellence X12CLA

X12CLA

Xcellence X12CLD

X12CLD

Xcellence X208A

X208A

Xcellence X208P

X208P

Xcellence X18T

X18T

Xcellence X218WFD

X218WFD
  • 1x D-LINK DAP-2360 Wireless Access Point + support
  • 1x Access Point power supply
  • 1x Ethernet cable, ECRJ45-1200 with housing shield both ends
  • 2x Ethernet cable, ECRJ45-500 with housing shield both ends
  • 1x Neutrik cable extension (RJ-45 feedthrough)
  • 1x USB Pendrive – with DSP Studio software

Transport aluminium briefcase included
