All new 3x 6” design with near audiophile quality and full range frequency response. Custom design 6” drivers and rotatable asymmetrical horn deliver exceptional power and performance, with highly consistent wide short-throw and narrow long-throw coverage.
6” low frequency custom driver with carbon fiber cone, specially developed rubber suspension and neodymium magnet. This ultra powerful lightweight driver provides near audiophile signal reproduction, extended LF response, and high SPLs.
| Amplifier program power | 500 W (LF) + 100 W (HF) Class D bi-amplified |
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 20 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 0.7 A (Heavy duty musical program) |
| SPL (1m) | 123 dB continuous, 126 dB peak |
| Built-in DSP | 48-bit processing unit. Includes factory presets. |
| AD/DA converters | 24 bit – 48 kHz |
| Presets | FLAT / NEARFIELD / LONGTHROW / SPEECH / XOVER |
| Standby mode consumption | < 5 W |
| Adjustable delay line | 118 ms / 40 m |
| Frequency response (-10 dB) | 53 Hz – 19 kHz |
| LF – MF | 3x 6” neodymium woofers with carbon fiber cone (1.5” voice coil) |
| HF | 1.4” PETP diaphragm compression driver |
| Directivity (HxV) | 50º to 100º x 55º |
| Dimensions (HxWxD) | 875 x 250 x 258 mm |
| Weight | 17 kg |
| Finish | Multilayer birch plywood with high resistant black Polyurea® coating |
| Grille | 1.5 mm steel with black acoustic mesh |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link |
| Data Sheet | Download |
| General user’s manual | Download |
| Architect specifications | Download |
| 2D CAD drawing | Download |
| GLL EASE library N36 | Download |

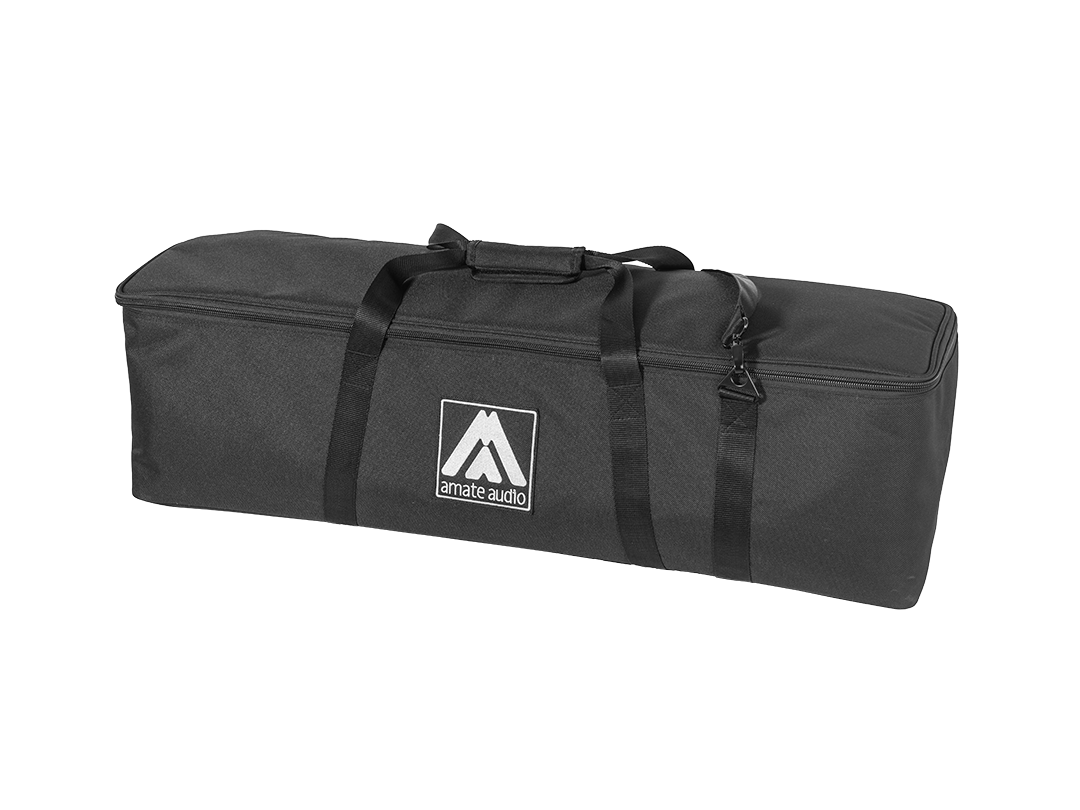

 | Protective Cover NC-36 for N36 | |
 | Wall Mount Bracket SP-46N - for N36 | User’s manual |
 | Wall Mount Bracket SP-WHR - for N36 | User’s manual |
 | Flying Bar HR-C - for N36 | User’s manual |
 | Flying Bar With Hook HR-C/GT - for N36 | User’s manual |
 | Telescopic Distance Rod SP/CRTL- for N36 | |
 | Safety Sling SC15 - for N36 | User’s manual |
 | M8 Rigging Eyebolt ACR-M8 - for N36 |
