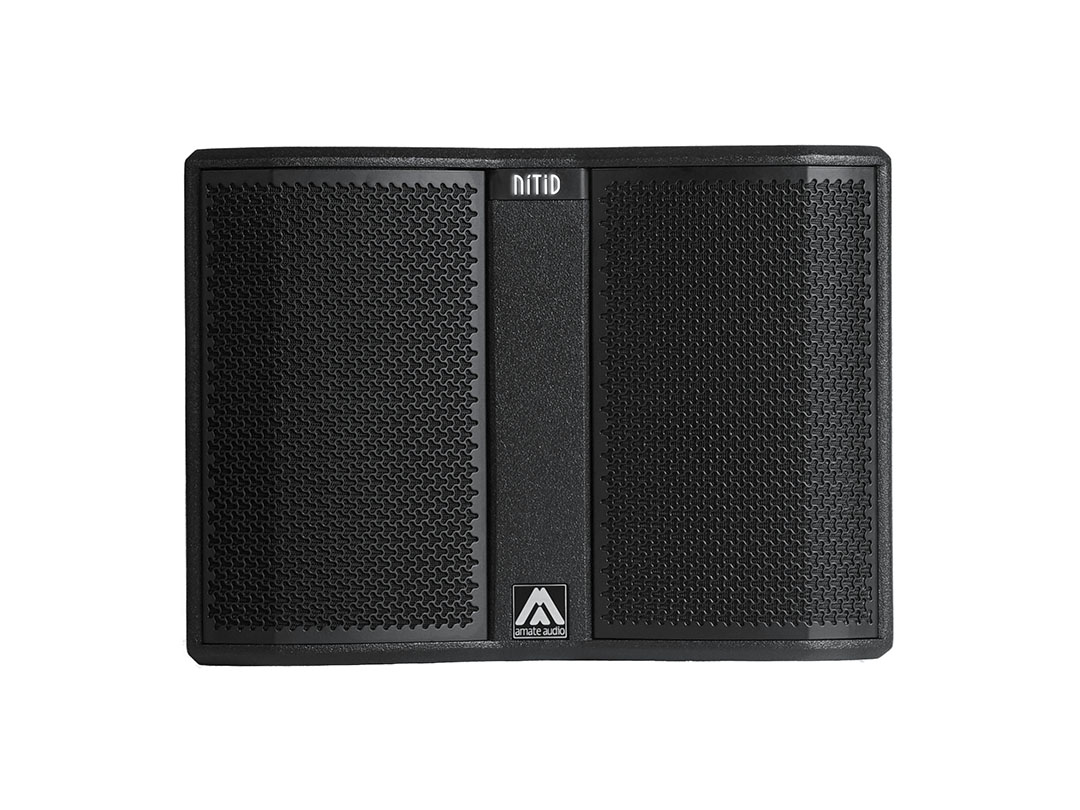

Nítid N12WP

Nítid N12WP

The optimum solution for reduced spaces. Precise low-end in a small and compact format, designed to have the best size-to-performance ratio.

Program power1000 W
Impedance8 Ω
SPL (1W/1m)96 dB
Maximum SPL (1m)126 dB continuous
Frequency response (-10 dB)38 Hz – 140 Hz (with external DSP)
LF12″ woofer (3″ voice coil)
Directivity (HxV)Omnidirectional
Dimensions (HxWxD)384 x 520 x 552 mm
Weight25.6 kg
FinishMultilayer birch plywood with high resistant black Polyurea® coating
Grille1,5 mm steel with black acoustic mesh
Connectors1x Speakon NL4MPR input / 1x Speakon NL4MPR link

Data Sheet

Download

General user’s manual

Download

Architect specifications

Download

2D CAD drawing

Download

GLL EASE library N12WP

Download

Flight Case

FC-N12W - for two units of N12W

Distance Rod

Telescopic – adjustable height for N12W
