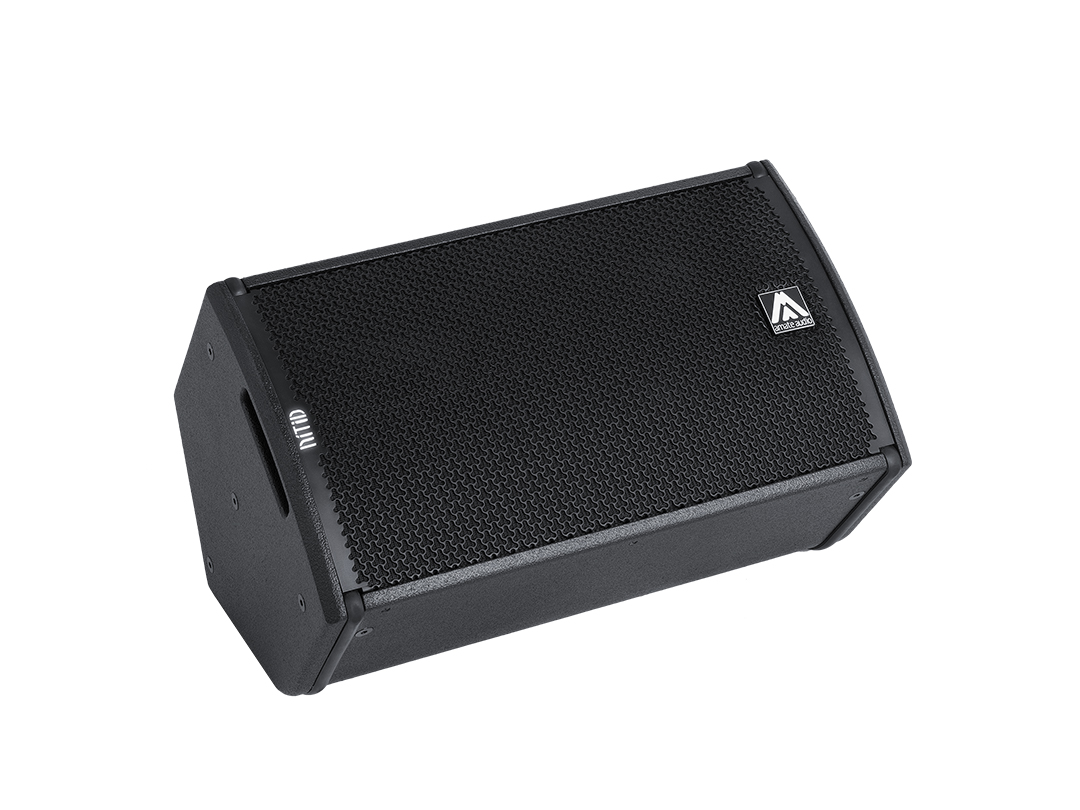

Nítid N10

Nítid N10

Outstanding low weight and size to power ratio. 600 W in a reduced 10” two way biamplified system format tears down any excuse to obtain a “big” sound in a small package.

Amplifier program power500 W (LF) + 100 W (HF) Class D bi-amplified
Input sensitivity8 dBu – 1.94 V
Input impedance20 KΩ Balanced
MainsUniversal switch mode Power Supply 85-265 V / 45-65 Hz
Average current draw0.7 A (Heavy duty musical program)
SPL (1m)125 dB continuous, 128 dB peak
Built-in DSP48-bit processing unit. Includes factory presets.
AD/DA converters24 bit – 48 kHz
PresetsFLAT / NEARFIELD / LONGTHROW / SPEECH / MONITOR / XOVER
Standby mode consumption< 5 W
Adjustable delay line118 ms / 40 m
Frequency response (-10 dB)52 Hz – 19 kHz
LF – MF10″ neodymium woofer (2.5″ voice coil)
HF1.4″ PETP diaphragm compression driver
Directivity (HxV)50º to 100º x 55º asymmetrical
Dimensions (HxWxD)543 x 310 x 335 mm
Weight14.5 kg
FinishMultilayer birch plywood with high resistant black Polyurea® coating and protective rubber profiles
Grille2 mm steel with black acoustic mesh
Connectors1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link

Data Sheet

Download

General user’s manual

Download

Architect specifications

Download

2D CAD drawing

Download

GLL EASE library N10

Download

Flight Case

FC-N10 for 2 units of N10

Wall Mount Bracket

UB-L for N10

User’s manual

Wall Mount Bracket

SP-WHR - for N10

User’s manual

Flying Bar

HR-S - for N10

User’s manual

Flying Bar With Hook

HR-S/GT - for N10

User’s manual

Telescopic Distance Rod

SP/CRTL- for N10

Safety Sling

SC-15- for N10

User’s manual

M8 Rigging Eyebolt

ACR-M8 - for N10
